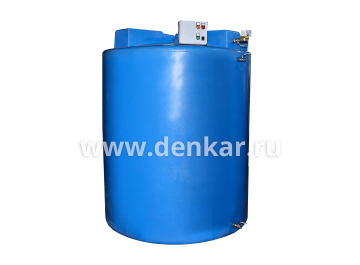

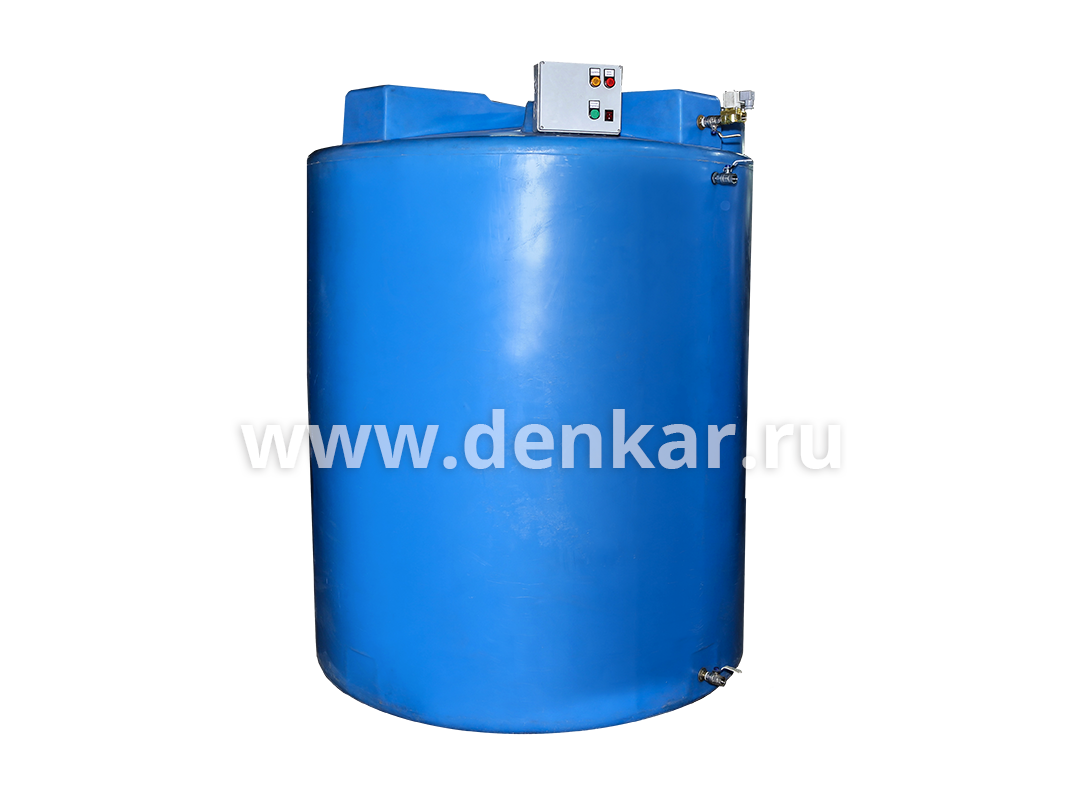

Feed water tank BPV-3000

Guarantee
  • Warranty period - 12 months

Description

Feed water tank BPV series SVV with automatic level control.

Designed for storing water and feeding water to steam boilers during their operation.

The product is structurally a water tank made of polyethylene, equipped with water level monitoring sensors.

The tank is equipped with an automation system and connecting pipes.

  • Technical Specifications
Name of the parameter BPV-500 BPV-1000 BPV-1500 BPV-2000 BPV-2500 BPV-3000 BPV-3500 BPV-4000 BPV-4500 BPV-5000
Working volume, liters 500 1000 1500 2000 2500 3000 3500 4000 4500 5000
Weight without water, kg 65 70 75 80 90 100 125 150 175 200
Maximum height, mm 1800 1800 2000 2000 2000 2000 2300 2300 2500 2500
Type of climatic design according to GOST 15150-69 UHL 4
