Thermal packaging machine TM-1PN M2

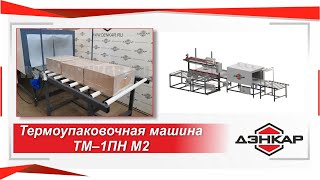

Video review of products

Composition of the machine

  • Feed roller conveyor with pusher
  • Constant-heat pneumatic thermal knife with automatic film unwinder
  • Diverting track conveyor
  • Heat chamber (3 heating zones)
  • Reception roller conveyor with finished product cooling fan

Machine type

  • Semi-automatic machine

Film type

  • Polyethylene (PE)

Examples of packaged products

Short Description

Thermal packaging machine TM-1PN M2 is designed for piece and group packaging of large-sized products, large boxes, large roll products in a polyethylene shrink wrap.

  • Technical specifications
General characteristics of the machine
Dimensions of the machine assembly (LxWxH), mm
7450 x 3850 x 2315
Weight of the device, kg
1170
Climatic version according to GOST 15150-69
УХЛ-4
Type of thermal camera control unit/thermal knife
Separate
Characteristics of the thermal chamber
Execution
Module
Overall dimensions in the working position (LxWxH), mm
2600 х 1400 х 1880
Net weight of the device, kg
360
Maximum power consumption, kW
24,6
Power supply parameters, V/Hz
380 / 50
Heating temperature adjustment range, °С
20 – 220
Conveyor dimensions (LxW), mm
2500 х 940
Conveyor speed, m/min
3-8 (adjustable)
Type of conveyor belt link
Plate
The working load on the conveyor is not more than, kg / m2
50
Camera length, mm
1800
Dimensions of the passage window of the chamber (WxH), mm
1000 х 600
Number of heating zones
3
Characteristics of the thermal knife
Execution
Module
Overall dimensions (LxWxH) without film, mm
3060 х 2700 х 2315
Net weight of the device, kg
590
Dimensions of the working part of the thermal knife, mm
1800
Air pressure in the pipeline, MPa (kg/cm2)
0,4–0,6 (4–6)
Welding type
Permanent
Number of heating elements (trimming, welding of the film)
1
Power consumption at the time of switching on, kW
2,4
Characteristics of the receiving roller
Dimensions of the receiving roller (LxW), mm
1500 х 1150
Characteristics of the shrink film
Type of Shrink film
Polyethylene (PE)

The manufacturer reserves the right to make changes in the construction and design of the product that do not impair its consumer properties.

* — The productivity of the line depends on the size of the product and the speed of the operator.
